Hive Mini.
Quick, Flexible, Remote I/O.

Autonomous Building Control.
Flexibility Everywhere You Need It.

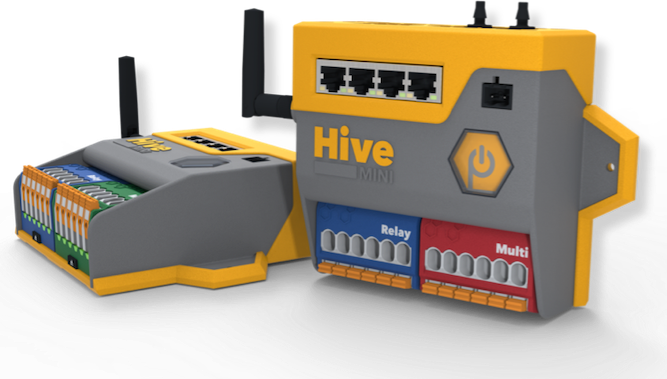

The Hive Mini® is what a remote field controller should be: flexible and quick installing. No need to home-run wires, as it can be deployed anywhere additional I/O is needed. Easily set up secure networks and connect to any device, extending the reach of the PassiveLogic autonomous ecosystem.

Hive%20Mini%20Big

Modular Simplicity.
Quickly Connect to Anything, Anywhere.

sensenano
  • Wired & Wireless Flexibility

  • Mix & Match: 2 Cell Module Bays

  • Thousands of Remote I/O Applications

  • Differential Pressure for VAV & AHU

  • IP & RS-485 Multi-protocol

fullySensedIcon

Networking Options

Networking is provided on board for flexibility and reliability.
Choose between the 4-port industrial Ethernet switch or self-federating wireless connections via enhanced mesh.

fullySensedIcon

Modular, Software-Defined I/O

Each Mini has 2 Cell module bays for software-defined I/O, providing application flexibility and automated I/O testing. Quickly deploy any of the 4 Cell® modules (Multi™, Relay™, Power™, or Motor™) to fit your building needs.

fullySensedIcon

Enhanced Wireless Mesh Technology

The Hive Mini automatically joins our self-healing private network with the PassiveLogic Hive controller and Sense® devices. As an advanced wireless mesh gateway, the Mini securely connects PassiveLogic wireless devices across large buildings.

fullySensedIcon

Differential Pressure Sensor

The Mini has a built-in differential pressure sensor that can measure air flow, filter status, and more, enabling VAV and AHU control applications.

fullySensedIcon

Versatile Connectivity

Connect to RTUs, actuators, IoT devices, and other equipment
fitted with packaged controls and built-in IP protocol support (BACnet/IP, BACnet/IPv6, Modbus TCP). Add a Multi Cell module for additional protocol support (BACnet MS/TP, Modbus RTU, and 1-Wire).

Use the Hive Mini for thousands of remote building control applications, including these and many more:

  • Valves

  • Actuators

  • Fan coil units

  • Sensor network applications

  • RTU (rooftop units)

  • VAV (variable air volume) systems

  • VRF (variable refrigerant flow) systems

  • Lighting control systems

  • IoT device networks

  • Motors (AC and DC)

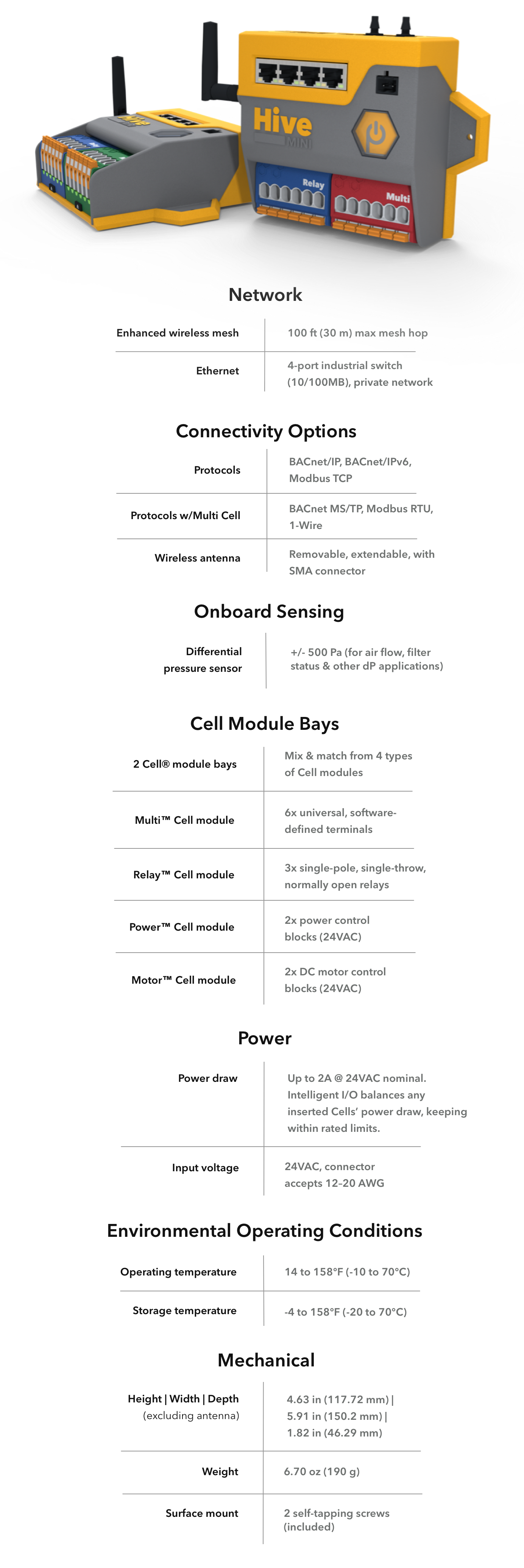

Hive Mini Specs

hive specs?timestamp=8678
hive mini schema
