Cell Modules.
Software Definable I/O.

Plug & Play Autonomous Control.
Designed with Installers in Mind.

These intelligent, easy-to-use, color-coded controllers plug into the PassiveLogic Hive™ & Hive Mini® to provide modular, first-of-its-kind, software-defined I/O. Connect to millions of equipment types using only the Cell modules you need—no more tricky point-license pricing structures. Four self-aware, specialized modules ensure accuracy and virtually eliminate manual commissioning for almost any project.

touch%20and%20nano%20together.2

Installs That Instill Confidence.
Same Time & Avoid Errors.

sensenano
  • LED Indicators for Live I/O Status

  • AI-Supported Commissioning

  • 6 Software-Definable I/O Terminals

  • Continuous Wire Monitoring

  • Digital Point Mapping & Labeling

fullySensedIcon

Cell I/O:
Meet the Modules

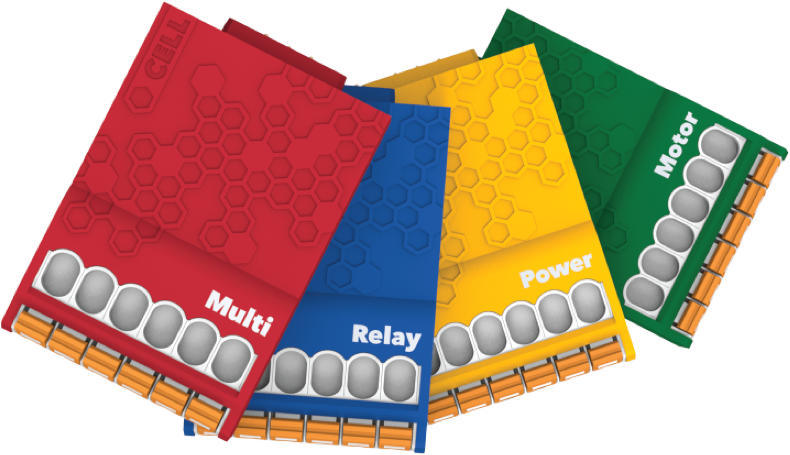

There are four different PassiveLogic Cell Module types for multiple use cases and protocols:

Multi™ Cell for general purpose I/O
Relay™ Cell with 3 single-pole, single throw, normally open relays
Power™ Cell for directly powering AC loads
Motor™ Cell for DC electric motor applications

fullySensedIcon

Software Defined
I/O

When a Cell module is installed in a PassiveLogic Hive or Hive Mini, they instantly recognize the Cell type and automatically update your digital twin. Cell I/O configurations are software-defined based on your control design, an industry first. The system understands each connection, and with the Multi Cell you can even make changes without needing physical wiring adjustments.

fullySensedIcon

Wiring Assistance,
Automated Testing &
Self Healing

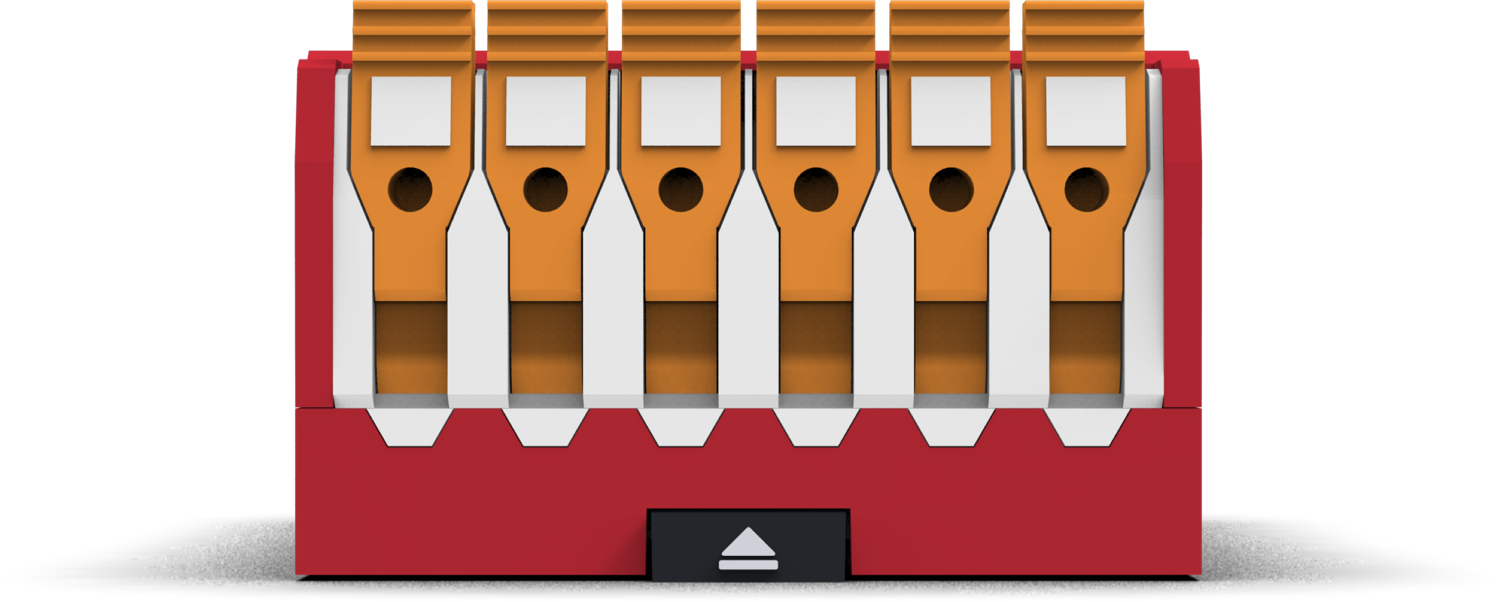

Our generative control design gives you the wiring diagram, saving you hours. As you install, the visual AI wiring assistant helps you avoid common errors during the installation process. Wiring is easy with the Cell’s time-saving, toolless lever-lock terminals and LED indicators. Each connection is automatically tested, showing multiple status indicators—a green light means you’re good to go.

fullySensedIcon

Every Wire
Monitored

Cell modules have built-in current, voltage, and power monitoring. They connect to almost any wire (10-24 AWG) and monitor their connections to ensure the system is properly configured and running optimally. Continuous commissioning is now a practical reality.

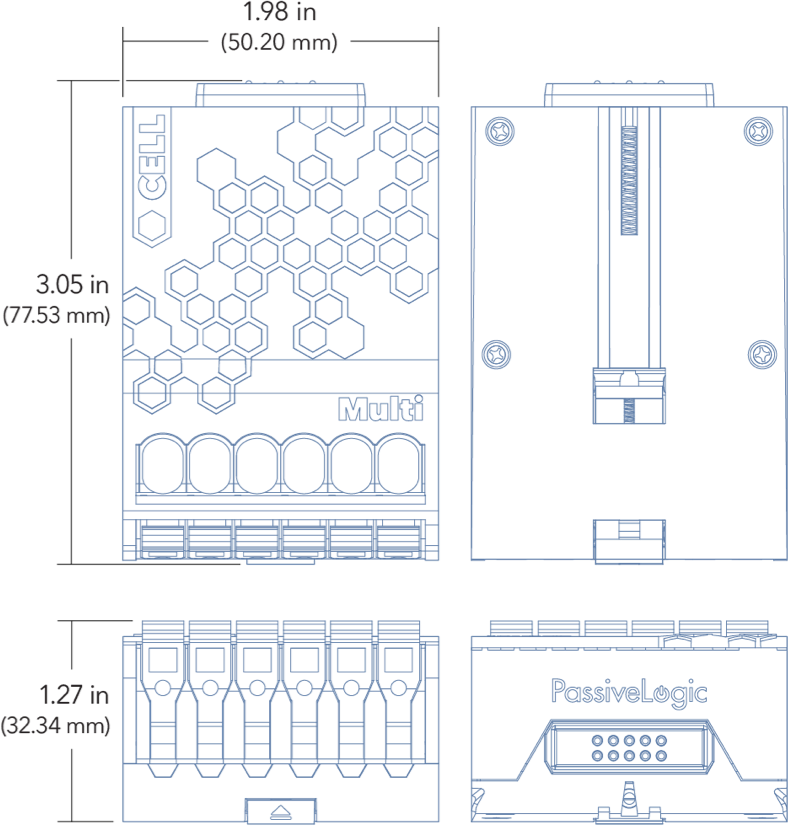

Cell Module Specs

placeholder image

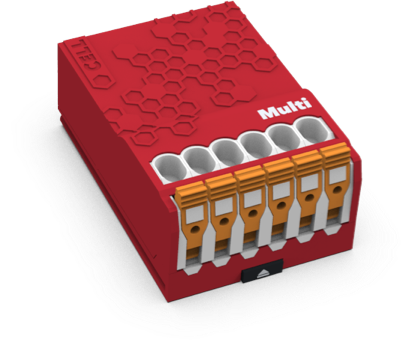

Multi Cell Specs

  • 6x universal, software-defined terminals

  • DC output: 0-24VDC, 60mA; 12VDC, 500mA


  • AC output: 24VAC, 500mA

  • Input: 0-24VDC/VAC, 0-20mA

  • Reads thermistors, RTDs

  • Real-time voltage monitoring

  • BACnet MS/TP, Modbus RTU, 1-Wire

placeholder image

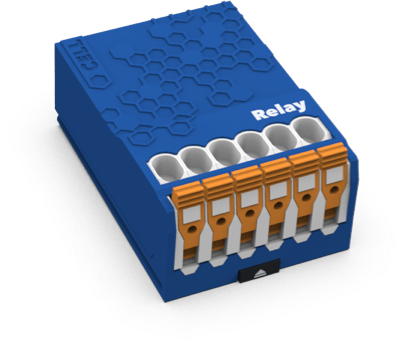

Relay Cell Specs

  • 3x single-pole, single-throw normally open relays

  • SPST relays up to 10A

  • Up to 240VAC, 330VDC

  • Real-time current monitoring

  • Real-time voltage monitoring

  • Real-time power monitoring

  • Motors, fans, pumps, lighting & more

placeholder image

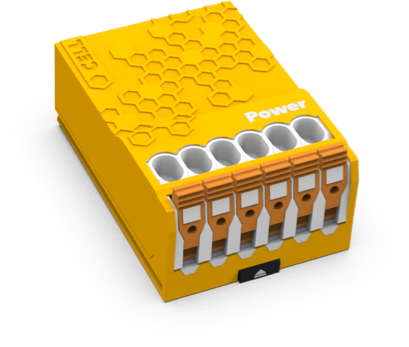

Power Cell Specs

  • 2x power control blocks

  • Voltage = Hive power supply voltage

  • 2 outputs, up to 1A

  • Real-time current & voltage monitoring

  • Real-time power monitoring

  • Overcurrent protection

  • Motors, fans, pumps, lighting & more

placeholder image

Motor Cell Specs

  • 2x DC motor control blocks

  • PWM speed control

  • Real-time current monitoring

  • Real-time voltage monitoring

  • Real-time power monitoring

  • Overcurrent & torque protection

  • Tachometer feedback
